Pigmento naranja 16-Corimax Orange BRN

Technical parameters of Pigment orange 16

Índice de color No.Pigmento naranja 16
Nombre del productoCorimax Orange BRN
Categoria de productoPigmento orgánico
Número CAS3520-72-7
Número de la UE222-530-3
Familia químicaDisazo
Peso molecular623.49
Fórmula molecularC32H24CI2N8O2
Valor de pH7
Densidad1.5
Absorción de aceite (ml / 100g)%35
Solidez a la luz (recubrimiento)5
Resistencia al calor (revestimiento)180
Solidez a la luz (plástico)6
Resistencia al calor (plástico)200
Resistencia al agua5
Resistencia al aceite4
Resistencia ácida4
Resistencia a los álcalis4
Color
Pigmento-naranja-16-Color
Distribución de hue

Solicitud:

Recomendado para recubrimientos en polvo, pastas de impresión, PVC, caucho, PP, PE, tintas offset, tintas a base de agua, tintas solventes
Sugerido para tintas PS, PU, UV.

TDS(Pigment-orange-16)

Información relacionada

There are 36 types of pigment commercial dosage forms, and they still have a certain market in Europe, America and Japan. It gives a yellowish orange color, which is significantly redder than the C.I. pigment orange 13 and pigment orange 34. Mainly used in printing inks, and can be used to adjust the color light of C.I. Pigment Yellow 12. Resinized formulations have high transparency, but poor fluidity. Due to their poor fastness properties, they are mostly used for packaging inks with high transparency and low cost.

Alias 21160; C.I.Pigment Orange 16; P.O.16; Dianisidine Orange; 2,2'-[[3,3'-dimethyl(1,1'-biphenyl)-4,4'-diyl]bis(azo)]bis(3-oxo-N-phenyl-Butanamide]; 2,2'-[(3,3'-dimethoxybiphenyl-4,4'-diyl)di(E)diazene-2,1-diyl]bis(3-oxo-N-phenylbutanamide)

InChI: InChI=1/C34H32N6O6/c1-21(41)31(33(43)35-25-11-7-5-8-12-25)39-37-27-17-15-23(19-29(27)45-3)24-16-18-28(30(20-24)46-4)38-40-32(22(2)42)34(44)36-26-13-9-6-10-14-26/h5-20,31-32H,1-4H3,(H,35,43)(H,36,44)/b39-37+,40-38+

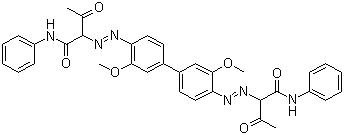

Estructura molecular:

Propiedades físicas y químicas

Solubility: Do not dissolve in water and ethanol, dissolve in concentrated sulfuric acid, and show orange precipitate after dilution.
Hue or light: red light orange
Relative density: 1.28-1.51
Bulk density / (lb / gal): 10.6-12.5
pH value / (10% slurry): 5.0-7.5
Oil absorption / (g / 100g): 28-54
Covering power: translucent
